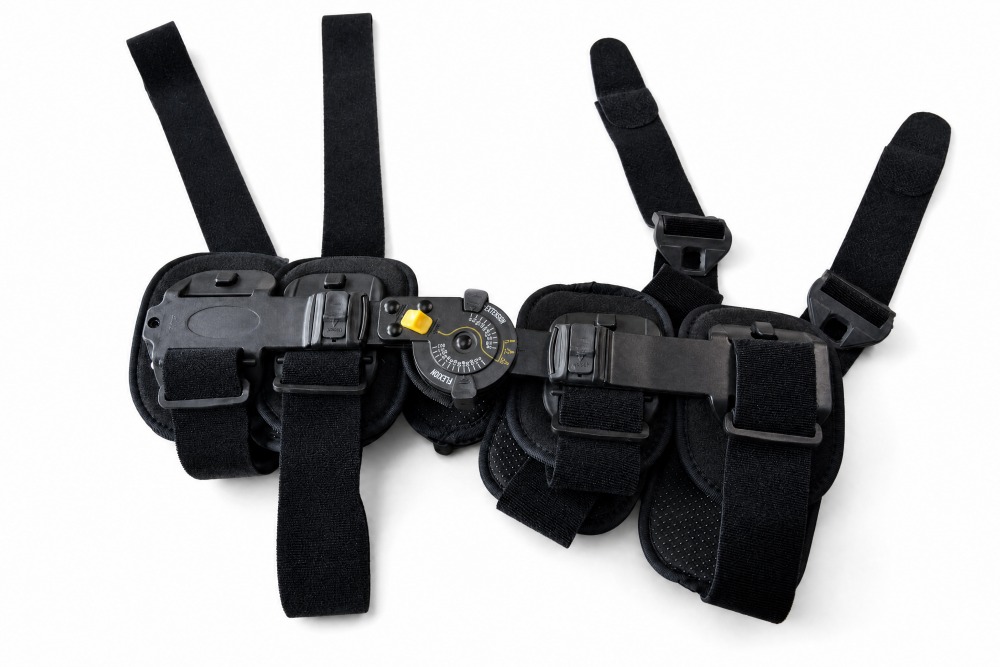

Adjustable ROM Knee Brace with Dial-Lock Hinges | Post-Operative Knee Stabilizer | CE Certified Manufacturer

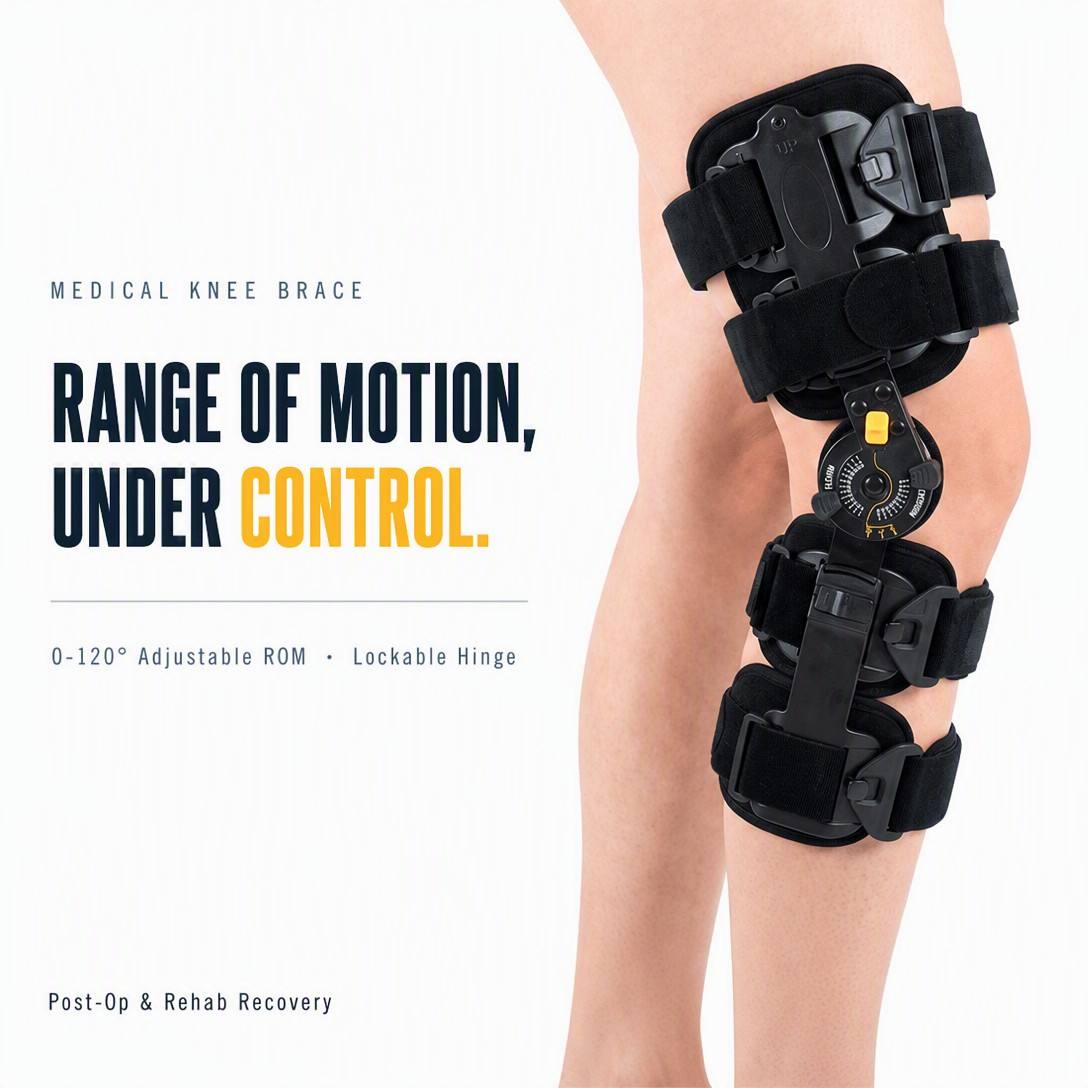

Adjustable ROM knee brace black worn on leg — post-operative knee stabilizer

Parameter	Specification
Model Number	CQS-KM011
Product Type	Adjustable Post-Operative ROM Knee Brace
Frame Material	Aluminum Alloy
Lining	Padded Fabric Lining
Hinge Type	Dial-Lock Hinges (Left & Right)
Flexion Range	0° – 120° (0/10/20/30/45/60/75/90/105/120)
Extension Range	0° – 90° (0/10/20/30/45/60/75/90)
Locking Mechanism	Central Slide-Lock Button
Straps	4 × Wide Hook-and-Loop Straps with Locking Clips
Orientation Marking	"UP" Indicator on Thigh Plate
Size	One Size Adjustable
Color	Black
Unit Weight	Approx. 800 g
Packing	10 pcs / Carton
Carton Size	56 × 11 × 8 cm (4928 cm³ / unit)
Certification	CE
Patent	Design Patent
OEM / ODM	Yes (Private Label Available)
MOQ	Negotiable (Sample Order Supported)
Origin	China

Adjustable ROM Knee Brace — Post-Operative Orthopedic Stabilizer

The CQS-KM029 is an adjustable Range-of-Motion (ROM) knee brace engineered for post-operative knee fixation, ligament injury rehabilitation, and fracture recovery support. As a clinical-grade orthopedic stabilizer, it delivers precise, repeatable motion control through a calibrated dial-lock hinge system — without relying on elastic tension or uncontrolled range.

Technical Specifications

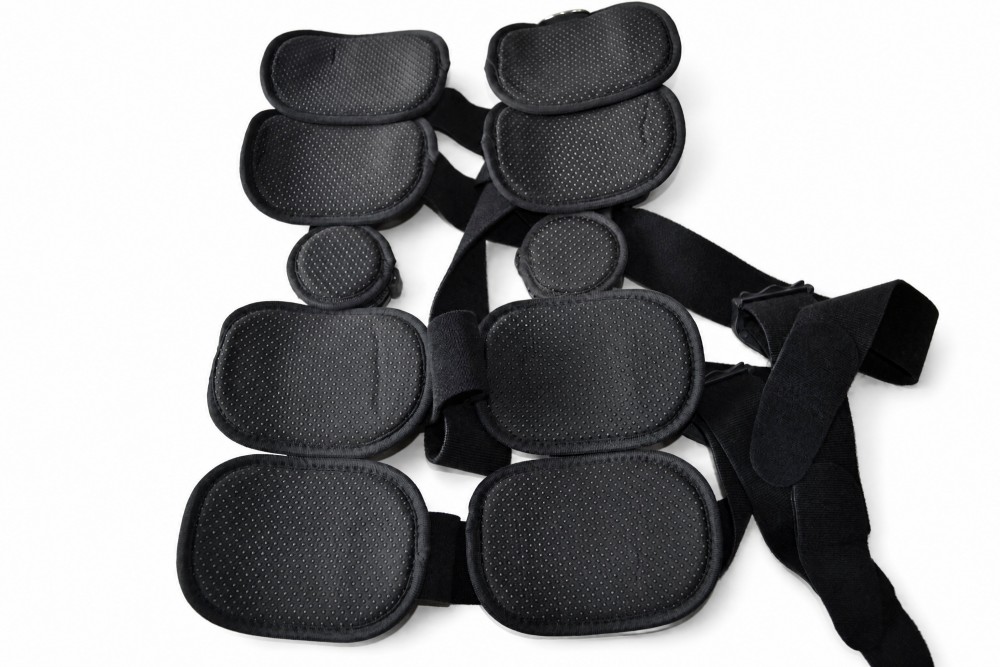

Aluminum alloy frame with padded fabric lining for structural rigidity and skin-friendly contact
Dual dial-lock hinges: flexion adjustable 0°–120°, extension adjustable 0°–90° in 10°–15° increments
Central slide-lock button for quick hinge locking / unlocking during therapy sessions
Four wide hook-and-loop straps with locking clips for secure, evenly distributed fixation
"UP" orientation marking on the thigh plate to prevent misapplication

Clinical Applications

Designed for use under professional guidance in the following scenarios:

Post-operative immobilization following knee surgery
Meniscus and cruciate ligament injury management
Fracture recovery and knee over-extension protection
Rehabilitation programs requiring staged range-of-motion control

Manufacturing & Quality Control

The CQS-KM029 is produced in a certified medical device manufacturing facility with standardized assembly lines, in-process dimension checks on hinge calibration, and batch-level packaging inspection. Each unit is packed at 10 pcs per carton with export-grade protective packaging.

Certifications & Compliance

CE certified for export to European and international markets. Design patent protected. Custom certification and labeling supported per destination market requirements.

OEM / ODM & Private Label

Full OEM/ODM service available: private label branding, custom color options, custom packaging, and instruction manual localization. MOQ negotiable; sample orders supported for evaluation.
